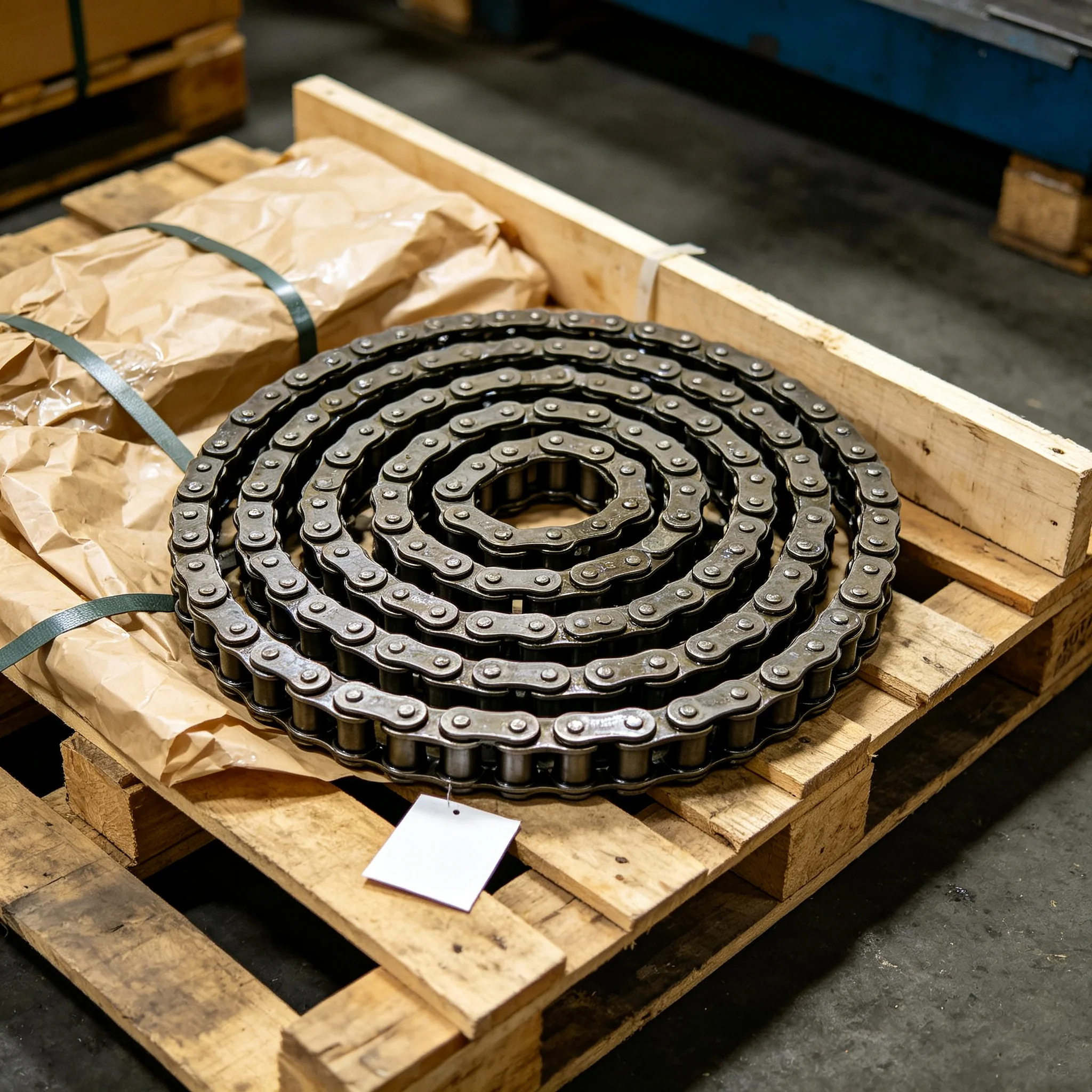

Standard single-strand roller-chain sizes for transmission and conveyor base-chain selection, with core dimensional and strength data from the connected internal catalogue.
Catalog-backed dimensionsThese sizes are useful both as power-transmission chains and as base chains for engineered attachments. Exact application rating still depends on speed, sprocket size, lubrication, duty cycle, shock and environment; ultimate-strength figures are not allowable working loads.
| ANSI | Pitch | Inside width | Roller Ø | Avg. ultimate strength | Avg. weight |
|---|---|---|---|---|---|
| 40 | 12.7 mm / 0.500 in | 7.92 mm / 0.312 in | 7.92 mm / 0.312 in | 17.66 kN / 3,970 lb | 0.42 lb/ft |
| 50 | 15.88 mm / 0.625 in | 9.52 mm / 0.375 in | 10.16 mm / 0.400 in | 29.45 kN / 6,620 lb | 0.68 lb/ft |
| 60 | 19.05 mm / 0.750 in | 12.7 mm / 0.500 in | 11.91 mm / 0.469 in | 41.24 kN / 9,270 lb | 0.97 lb/ft |
| 80 | 25.4 mm / 1.000 in | 15.88 mm / 0.625 in | 15.88 mm / 0.625 in | 73.57 kN / 16,540 lb | 1.71 lb/ft |
| 100 | 31.75 mm / 1.250 in | 19.05 mm / 0.750 in | 19.05 mm / 0.750 in | 112.81 kN / 25,360 lb | 2.65 lb/ft |
| 120 | 38.1 mm / 1.500 in | 25.4 mm / 1.000 in | 22.22 mm / 0.875 in | 145.19 kN / 32,640 lb | 3.79 lb/ft |
Do not select a gripper or attachment chain from tensile strength alone. Fit depends on sprocket engagement, pitch, width, attachment location, product contact geometry, conveyor path, lubrication and environmental conditions. For replacement work, a dimensioned sample or drawing is preferred.
Pair the gripper or conveyor chain with the correct base chain, attachments and sprocket where the application requires it.
